Edge Protection

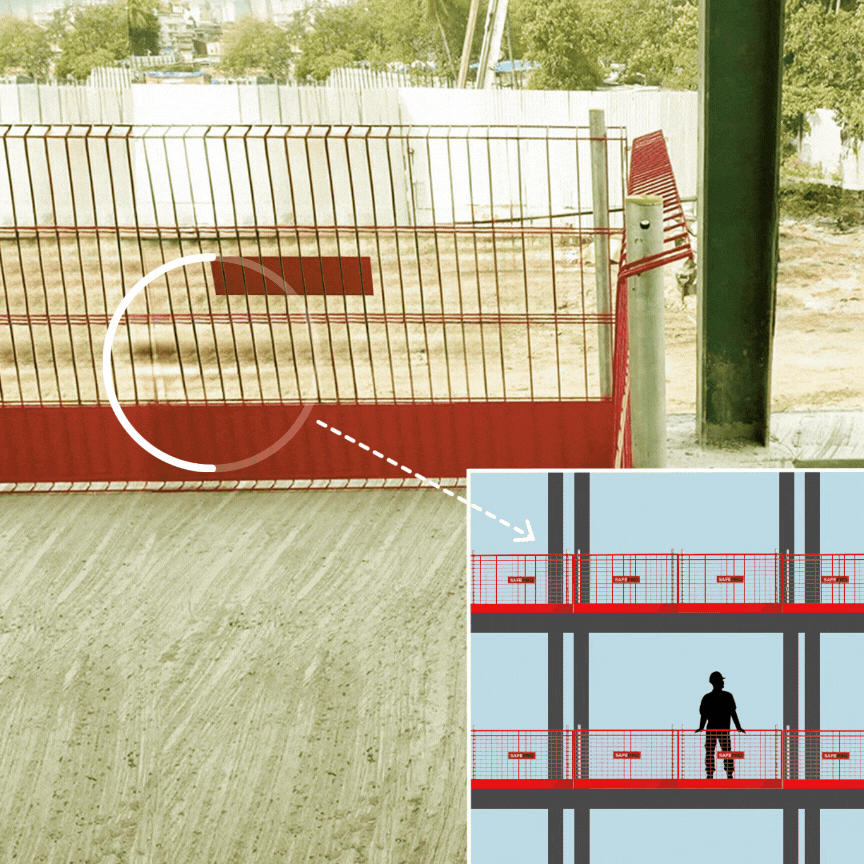

Edge Protection is a strong metal barrier erected on the edges of high-rise construction structures, boundaries of open areas, dangerous openings and shafts to prevent accidental falls.
With over 12+ years of experience, SAFEPRO fuses engineering and unparalleled safety to design some of the safest fall protection systems, helping the vertically growing construction industry by eliminating hazardous falls.
With rigorous craftmanship & flawless safety, SAFEPRO Edge Protection remains unstoppable in eradicating fatal falls.

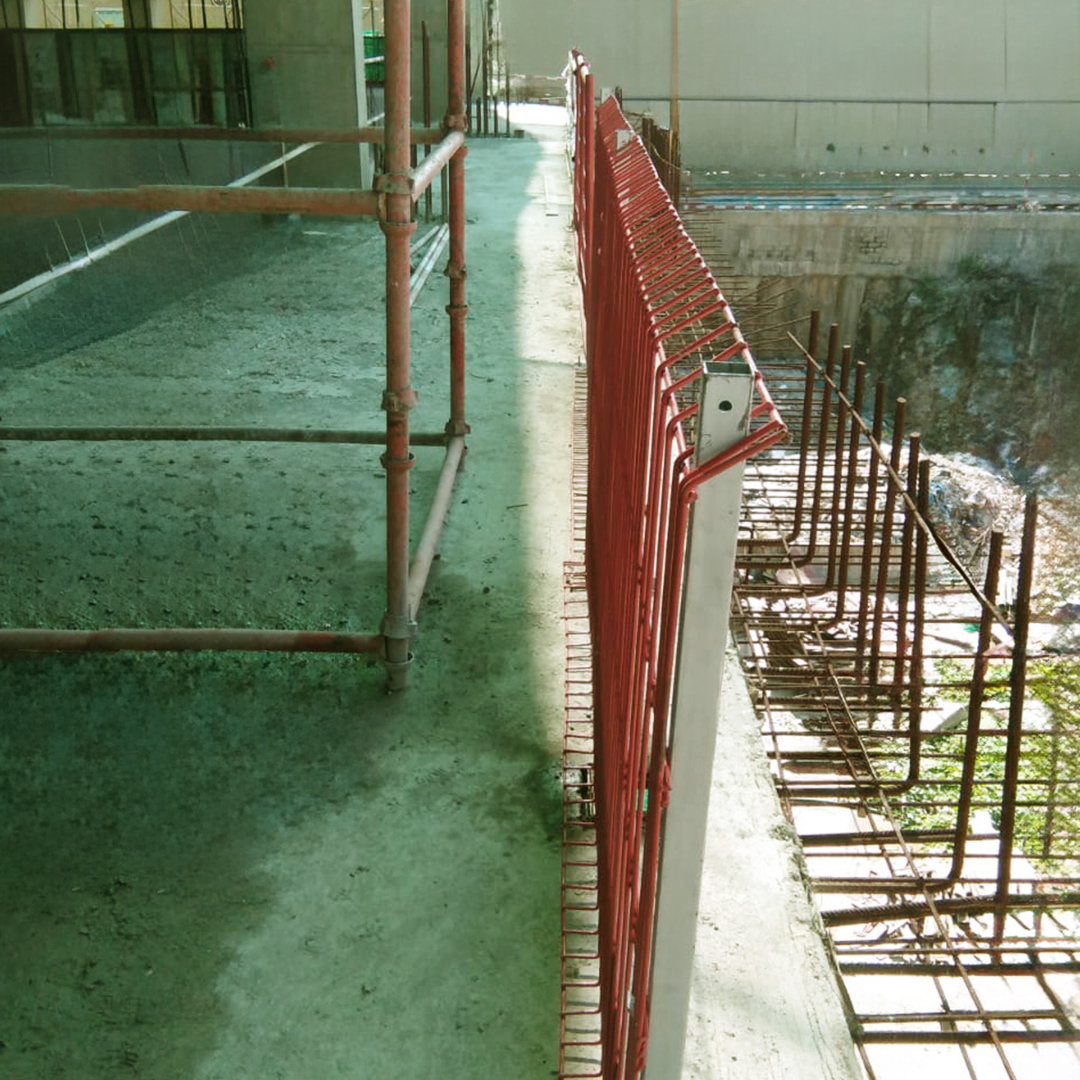

Technical Specifications
Fundamentals such as these make “Accident Zero” possible.
Specification | Details |
|---|---|
System Components | Guardrails, toe boards, uprights, clamps, and attachments |
MOC | High-strength steel (tubular sections and mesh) |
Overall Dimensions | 1200 mm height x 2000 mm length (size can be customised as per site conditions) |
Toe Board | 150 mm |
Load Capacity | Static load: 1.25 kN/mtr (horizontal force at top rail) Dynamic load: 1.0 kN impact (as per EN 13374 Class C) |
Clamps & Attachments | Adjustable to suit concrete slabs, steel beams, and other structural elements |
Anchor Type | Sleeve anchors for concrete slabs Clamp attachments for steel beams or standing seam roofs |
Surface Finish | Painted or powder coated |
